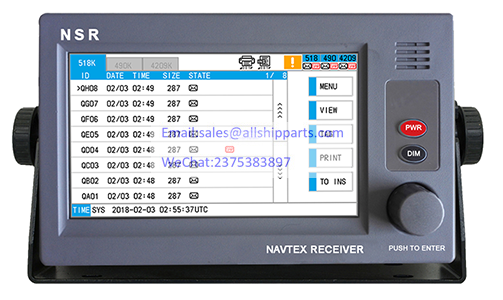

NSR NVX-1000/NVX-3000 NAVTEX
NSR NVX-1000/NVX-3000 NAVTEX
Contact: Lily Zhang
E-mail:sales@allshipparts.com
E-mail:info@allshipparts.com
WeChat:Allshipparts
Leading product on the market.
NSRˇs latest design and technology.
Another great member of
NSR GMDSS family.

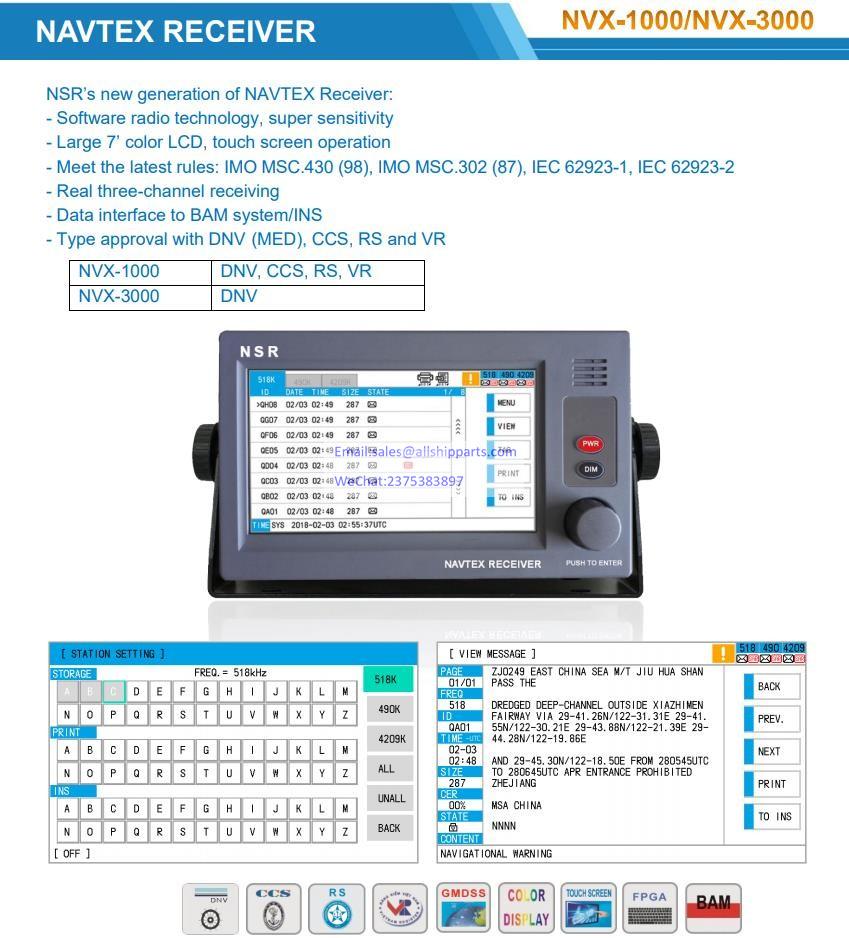

【FEATURES】
NSR's
new generation of NAVTEX Receiver:
- Software radio technology, super sensitivity.
- Large LCD, 7 inch/color, touch screen operation.
- Meet latest rules: IMO:M430(98), IMO:M302(87), IEC: 62923-1, IEC: 62923-2.
- Real three-channel receiving.
- Messages stored for 72 hours.
- Data interface to BAM System/INS.
- Type approval with DNV (MED),CCS,RS and VR.

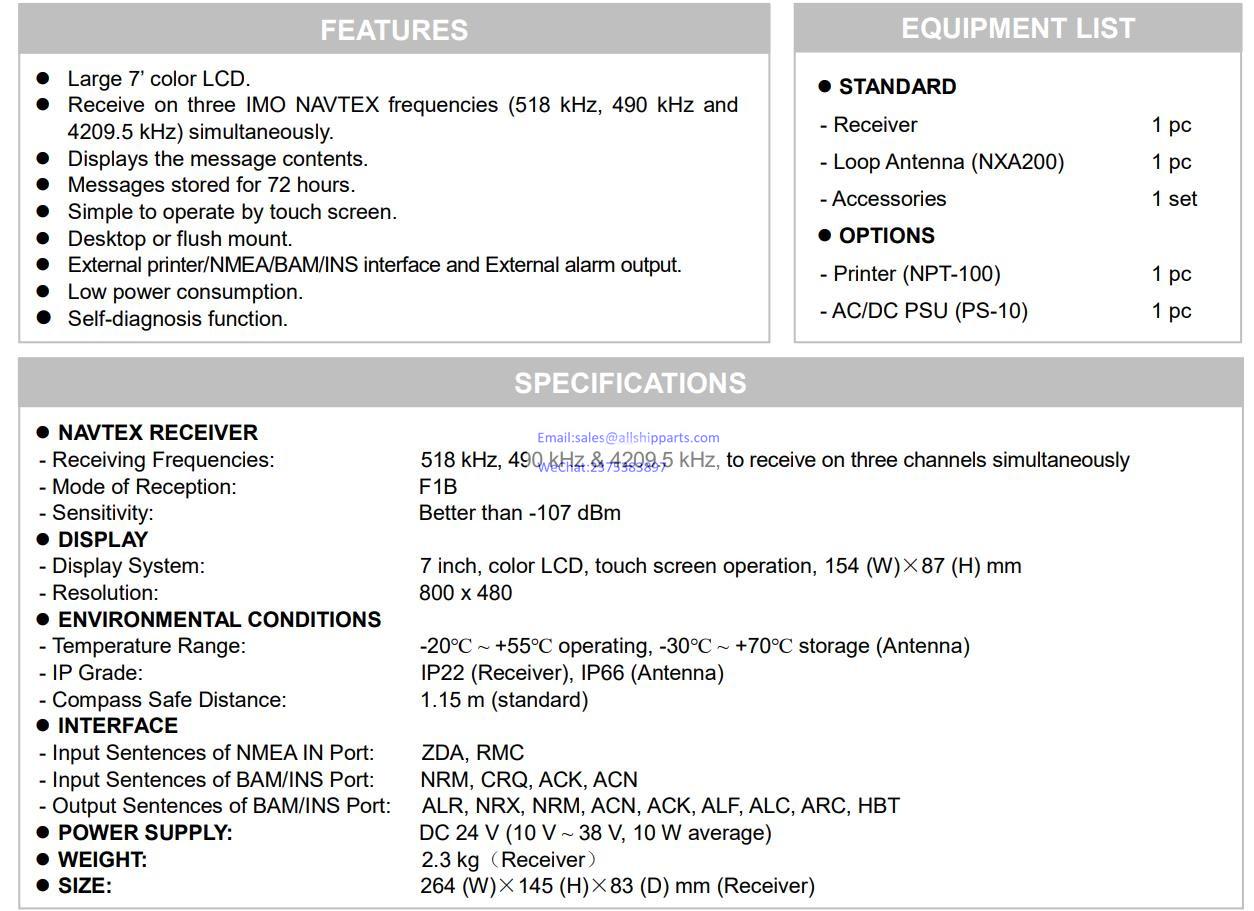

【SPECIFICATIONS】
|
NAVTEX Receiver |
|
|
Receiving Frequency: |
518kHz, 490kHz & 4209.5kHz, to receive on three channels simultaneously |
|
Mode of Reception: |
F1B |
|
Sensitivity: |
Better than -107dBm |
|
Display |
|
|
Display System: |
7 inch, color LCD, touch screen operation, 154(W) x 87(H) mm |
|
Resolution: |
800 x 480 |
|
Character number: |
English 40 Characters /line |
|
Power Supply |
DC 24V (10V～38V, 10Watts average) |
|
Environment Conditions |
|
|
Temperature Range: |
-20℃ ~ +55℃ operational |
|
IP Grade: |
IP22 (Receiver), IP66 (Antenna & Amplifier) |
|
Compass safe distance: |
1.15m (standard) |
|
Interface |
|
|
Input sentences of NMEA IN port: |
ZDA, RMC |
|
Input sentences of BAM/INS port: |
NRM, CRQ, ACK, ACN |
|
Output sentences of BAM/INS port: |
ALR, NRX, NRM, ACN, ACK, ALF, ALC, ARC, HBT |
|
Dimension & Weight |
|
|
Weight: |
2.3 kg (Receiver) |
|
Dimension: |
264(W) x 145(H) x 83(D) mm (Receiver) |
